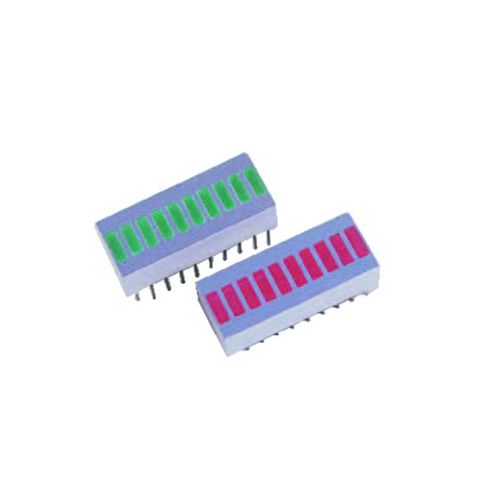

A 10-segment LED ladder encapsulated in a 20-pin DIL package. Designed for use as solid state level indicators, each LED is completely separate from the others in the package. The LEDs may be driven from LM3914, LM3915, LM3916 or equivalent bargraph driver ICs. The displays are available in red or green and may be stacked end to end.Specifications
Price: £1.49 from Tesco
| Retailer | Price | |
|---|---|---|
| Tesco | £1.49 | Go to shop |

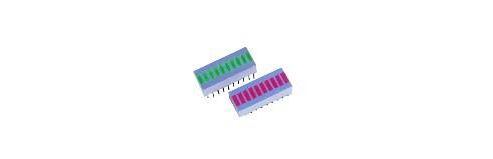

A 10-segment LED ladder encapsulated in a 20-pin DIL package. Designed for use as solid state level indicators, each LED is completely separate from the others in the package. The LEDs may be driven from LM3914, LM3915, LM3916 or equivalent bargraph driver...

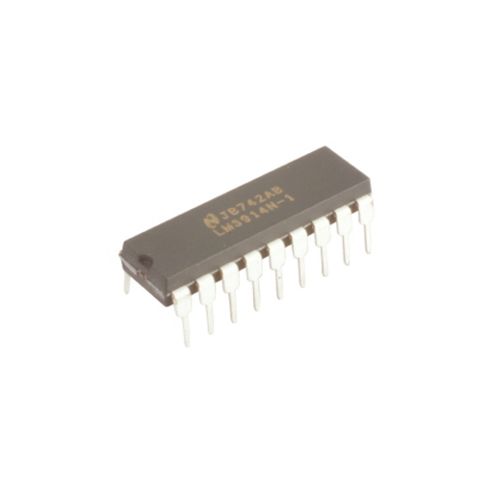

An LED driver that will sequentially light ten LEDs when a gradually increasing voltage is applied to pin 5, (dot mode) or in bar mode all LEDs indicating voltages below input are lit. In dot mode there is a slight overlap so that at no point are all...
The LM317LZ is a positive variable regulator in a TO92s style case and has the following specifications:
|
|
