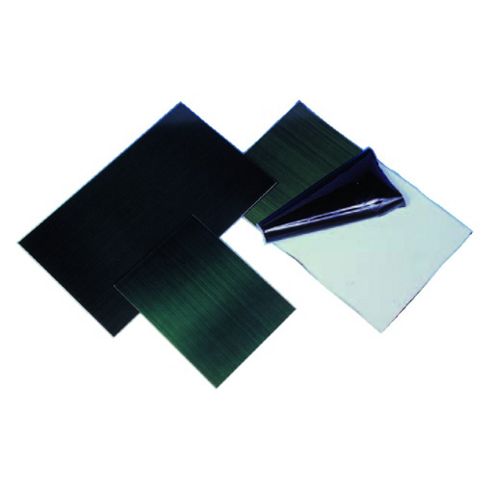

The PCB should be exposed using our UV exposure box and a circuit overlay transparency. Exposure time will be from 8 to 15 minutes. Mix together 0.5 litres approximately with one teaspoonful of sodium hydroxide (available from most chemists) and pour into a tray (CH38R). Gently rock the exposed PCB in the tray until the unwanted photo resist is dissolved away. Etch the board in a bath of ferric chloride and after rinsing, expose the PCB in the UV box for a further 10 minutes. Wash off all the remaining etch resist in a tray of sodium hydroxide solution. Sizes available:
Price: £3.49 from Tesco
| Retailer | Price | |
|---|---|---|
| Tesco | £3.49 | Go to shop |
